TECHNICAL DATA

The Edge90°

Increased the bend radius, ensuring maximum strength retention.

Buy Now

About

Usage

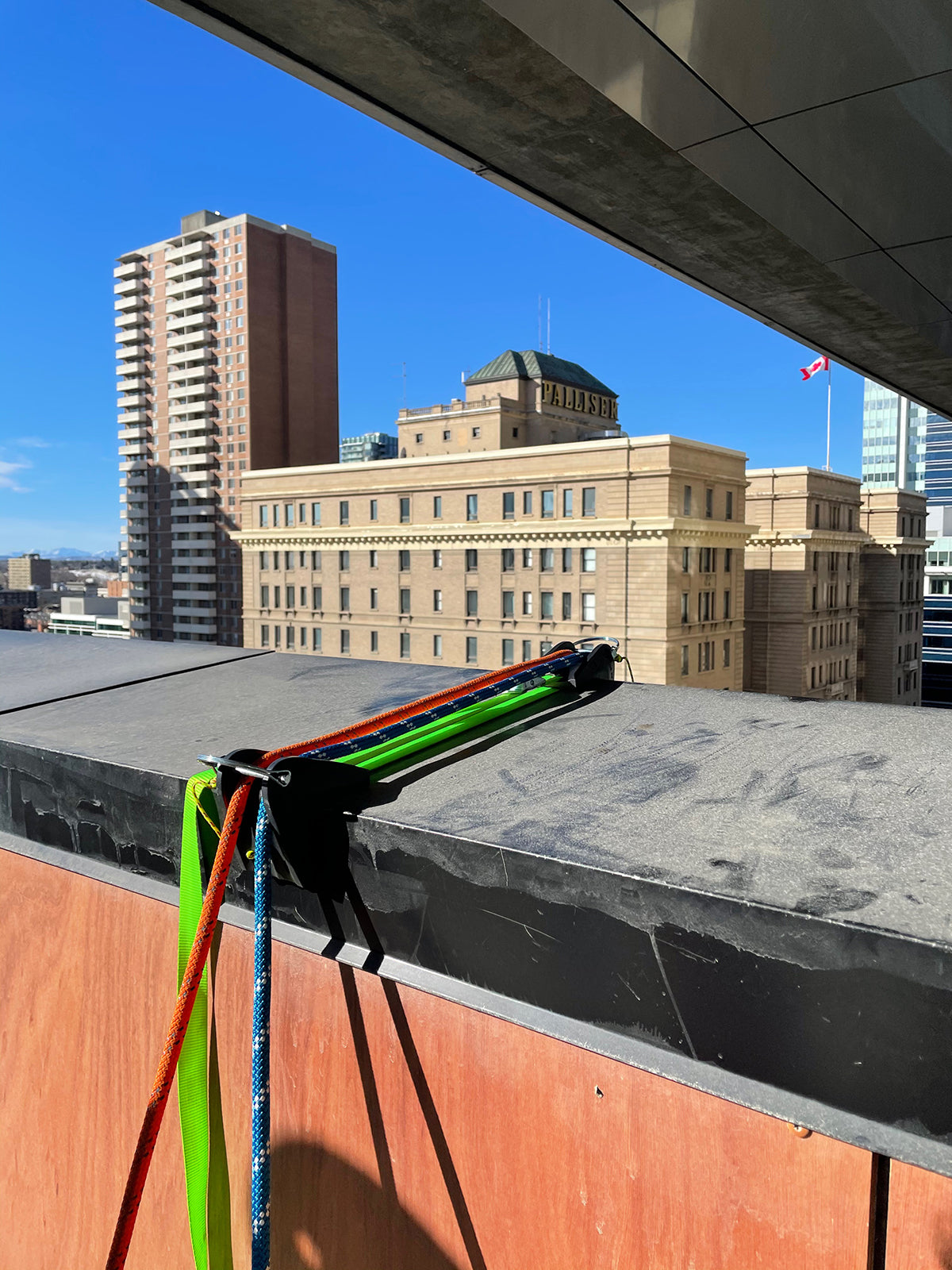

The Edge90° have been designed for use with nylon kernmantle rope or nylon slings as a physical barrier to a potential hazard or an abrupt 90° bend.

Weight

The Edge90° should not be used if the potential load on the product could exceed 250 kg.

Load Distribution

The Edge90° has a grippy rubber base to distribute the load & forces on the parapet and maintain its position during installation, removal, and normal use.

Technical Data Sheet


Product Specs

MELTING POINT

175° C

TENSILE STRENGTH

48 Mpa / 6960 psi

ELONGATION

20%

IMPACT RESISTANT

To 1247 flbs/ sq. inch

LOW TEMP LIMIT

-40°C in short term duration
